FEATURE:
--High torque and quick respond Standard servo
--High-precision aluminium gears ensure long-life and durability
--Tiny gear clearance
--Dual ball bearings
--High quqlity core motor
--Water proof
--Suitable for CCPM, steering servo on 1/8 scale cars
SPECIFICATION:
Dead band: 4μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 300hz
Operating Voltage: DC4.8~6.0 V
Operating Temperature Range: -10 to + 60 degrees
Operating Speed (4.8V): 0.19sec/60 degrees at no load
Operating Speed (6V): 0.17 sec/60 degrees at no load
Stall Torque (4.8V): 19.23kg.cm (253.49oz/in)
Stall Torque (6V): 20.33 kg-cm (282.38 oz/in)
Potentiometer Drive: Direct Drive

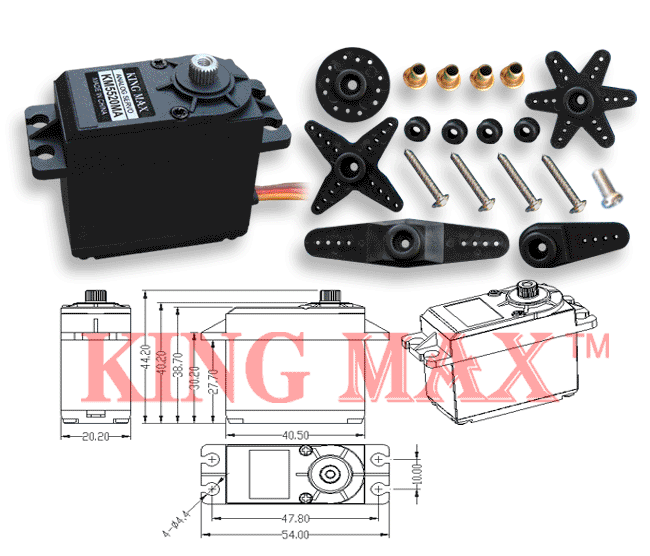

Dimensions: 40.5X20.2X44.2mm /1.59 X0.80X1.74 in
Weight: 55.6 g (1.96oz)
Connector Wire Length: JR 265 mm (10.43in)
